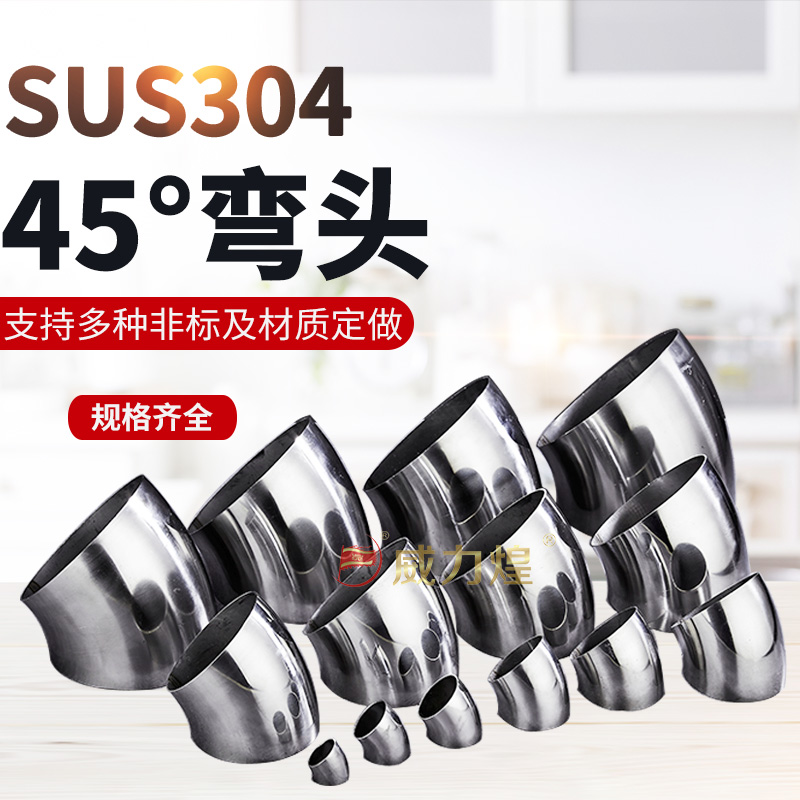

When the stainless steel pipes need to change direction during the layout of the tooling, stainless steel elbows should be used for connection, with an Angle of45o,90oWait.

　　The commonly used method for the forming production of stainless steel elbows is the push-bending forming process.

　　Push bending is a commonly used method for bending stainless steel pipe fittings, mainly used for bending elbows. According to the characteristics of the process, it can be divided into cold push bending and mandrel hot push bending.

　　1Cold push bending

　　The process method of pushing and bending the tube blank on a common hydraulic press or crank press by using a bending device is to press the stainless steel straight tube blank into a mold with a bending cavity at room temperature, thereby forming a stainless steel elbow.

　　Cold-pressed bent pipes are suitable for stainless steel elbows with a relatively small bending radius, and their minimum relative bending radiusr/d≈1.3The ellipticity of the elbow section is small(≤3%-5%)The outer pipe wall becomes thinner and smaller(≤9%)All can be bent; The elbow pushing and bending device has a simple structure, does not require special equipment, and has a high productivity. However, the relative thickness of stainless steel pipes is generally requiredt/d≥0.06Otherwise, the tube blank often loses stability due to poor rigidity, resulting in wrinkling or twisting on the inner side of the elbow.

　　2Hot-push bending of the mandrel

Mandle-type hot push bent pipes are produced on a dedicated pushing machine. Under axial thrust, they pass through a horn-shaped mandle-shaped material, which is heated and pushed simultaneously. This causes the pipe blank to undergo circumferential expansion and axial bending deformation, thereby pushing a smaller-diameter pipe blank into a larger-diameter elbow.

　　Foshan Weilihuang Trading Co., Ltd. is a leading manufacturer specializing in the production and sales of international and domestic stainless steel hardware accessories and its own brands. The company is located at Tianjinli Hardware Accessories Center, Lanshi 2nd Road, Chancheng District, Foshan City, Guangdong Province8seat10-12The number (i.e., the main entrance of the market) has an abundant supply of goods, a complete range of varieties, wide coverage, favorable prices, and stable and superior quality!

　　The company uses high-quality stainless steel and exquisite craftsmanship to ensure there are no weld marks at the interfaces. Its products feature novel designs, elegant craftsmanship, and long-lasting durability. The company has always adhered to the principle of quality first and reputation first. It is equipped with mature production facilities and has strong technical strength, thus ensuring the quality of its products. The company is willing to make unremitting efforts to join hands with our customers to create a win-win situation and provide high-quality products for our partners.
