Elbow arrangement1Two sections90The sine wave length when the elbow is opened is the midline length of the pipe wall:ΦxThe wave height is: the lower half represents the radius of the outer wall of the pipe, and the upper half represents the radius of the inner wall of the pipe.

　　2Three sections90The length of the sine wave opened by the degree bend is still the midline length of the pipe wall:ΦxThe heights of the other two sections of the wave are:Sin22,5°xΦThe curvature of the middle section is the symmetrical sine wave at both the upper and lower ends.

　　If one cannot draw a sine wave, they have to use the "fractional projection" method to find the real length lines of each segment and connect the real length poles to form an approximately sinusoidal waveform.

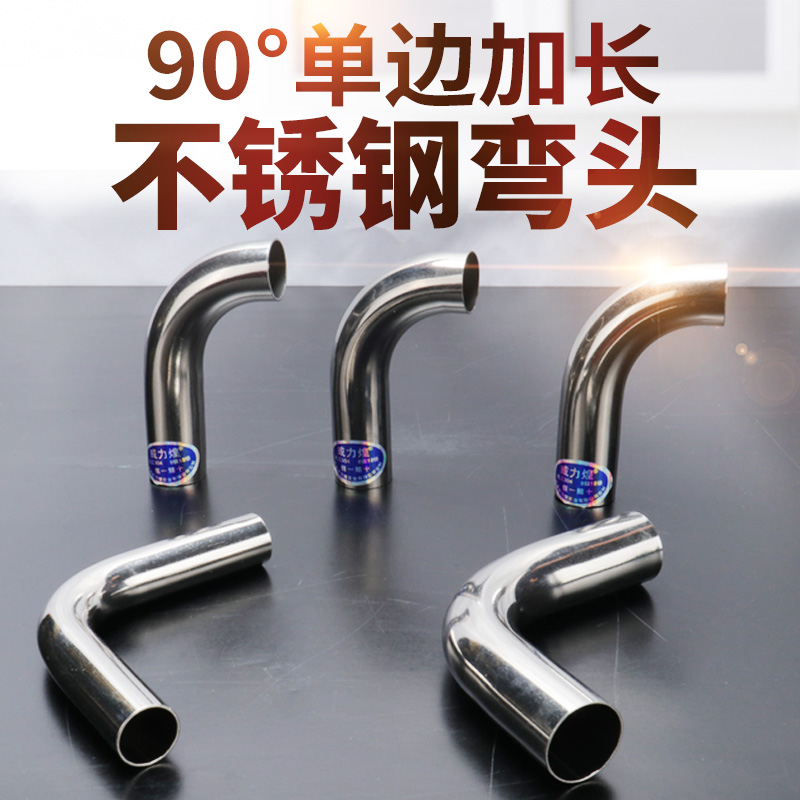

　　How is the Weilihuang stainless steel elbow?
　　Foshan Weilihuang Trading Co., Ltd. is a leading manufacturer specializing in the production and sales of international and domestic stainless steel elbows and other stainless steel hardware accessories as well as its own brands. The company is located at Tianjinli Hardware Accessories Center, Lanshi 2nd Road, Chancheng District, Foshan City, Guangdong Province8seat10-12The number (i.e., the main entrance of the market) has an abundant supply of goods, a complete range of varieties, wide coverage, favorable prices, and stable and superior quality!

　　The company uses high-quality stainless steel and exquisite craftsmanship to ensure there are no weld marks at the interfaces. Its products feature novel designs, elegant craftsmanship, and long-lasting durability. The company has always adhered to the principle of quality first and reputation first. It is equipped with mature production facilities and has strong technical strength, thus ensuring the quality of its products. The company is willing to make unremitting efforts to join hands with our customers to create a win-win situation and provide high-quality products for our partners.
